The persistent drone of a portable air conditioner can significantly diminish the comfort and productivity of even the most dedicated workshop. This isn’t just an annoyance; prolonged exposure to noise can lead to hearing fatigue and reduced concentration, turning a creative space into a source of stress. For many workshop enthusiasts and professionals, the solution lies not in enduring the noise, but in engineering a better environment. This article guides you through building a custom DIY Portable AC Enclosure Cabinet: Soundproofing and Ventilation Solutions for Workshop Cooling Systems to transform your workspace in 2026. This project improves comfort, reduces noise, and integrates your AC unit seamlessly into your workspace, making your workshop a more enjoyable and efficient place to work.
Key Takeaways
- A DIY portable AC enclosure cabinet significantly reduces noise pollution from your workshop cooling system.
- Proper ventilation design is critical to prevent overheating and maintain AC efficiency.
- Strategic use of soundproofing materials like mass loaded vinyl and acoustic foam dramatically improves noise reduction.
- The enclosure should be designed for easy maintenance and access to the AC unit.
- Integrating the enclosure into your existing workshop layout enhances both aesthetics and functionality.
Why a DIY Portable AC Enclosure Cabinet is Essential for Your Workshop
Portable air conditioners are invaluable for cooling workshops, especially during the warmer months. They offer flexibility, allowing you to direct cool air exactly where it’s needed without the complexity of a permanent HVAC installation. However, their primary drawback is noise. The compressor, fan, and vibration can create a significant distraction, making detailed work or even conversation difficult. Beyond noise, an exposed unit can be a dust magnet, and its exhaust hose often looks unsightly and can be inefficient if not properly vented.
A custom-built enclosure cabinet addresses these issues head-on. By housing the unit within a well-designed cabinet, you can:
- Reduce Noise: Sound-dampening materials absorb and block sound waves, making the workshop environment much quieter.
- Improve Aesthetics: The enclosure can be designed to blend seamlessly with your workshop’s decor, looking far more professional than a standalone AC unit. For example, it can be integrated into a larger system of DIY wooden storage solutions for the garage shelves cabinets and organization systems.
- Optimize Airflow: Dedicated intake and exhaust vents ensure the AC unit operates efficiently without overheating.
- Protect the Unit: The cabinet acts as a barrier against sawdust and accidental damage, extending the life of your appliance.
- Enhance Safety: Hoses and cords are contained, reducing trip hazards and creating a cleaner workspace.
Considering the long-term benefits for comfort, productivity, and equipment longevity, investing time in a DIY Portable AC Enclosure Cabinet: Soundproofing and Ventilation Solutions for Workshop Cooling Systems is a wise decision for any serious woodworker or DIY enthusiast.
Designing Your DIY Portable AC Enclosure Cabinet: Soundproofing and Ventilation Solutions
The success of your enclosure hinges on thoughtful design, balancing effective soundproofing with optimal airflow. Without proper ventilation, the AC unit will overheat, become inefficient, and potentially suffer damage. Without proper soundproofing, the noise benefits will be minimal.

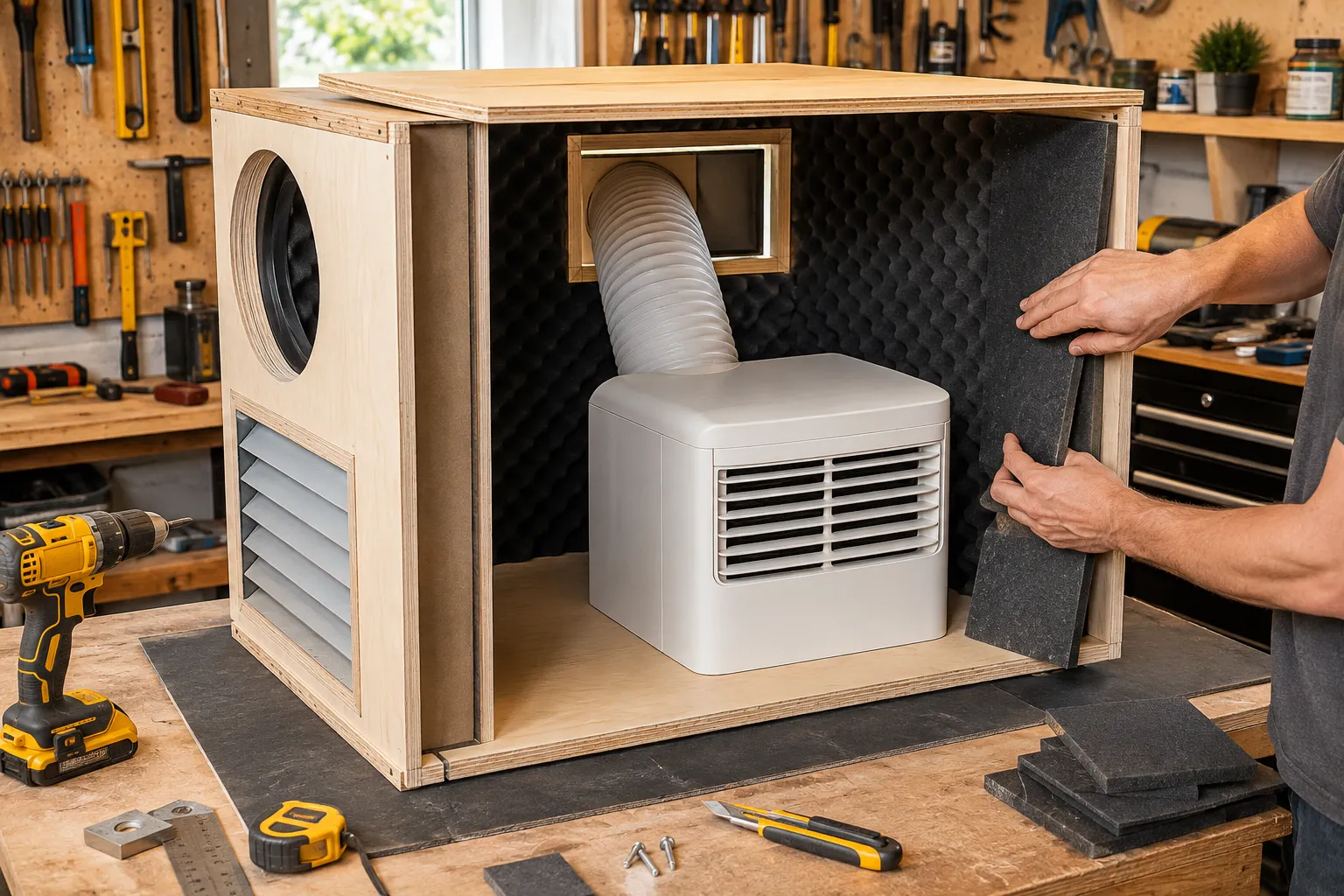

Key Design Considerations
- AC Unit Dimensions: Accurately measure your portable AC unit’s height, width, depth, and the locations of its air intake, exhaust port, and condensate drain. Leave at least 3-4 inches of clearance around the sides and top for airflow and maintenance.
- Material Selection:
- Cabinet Body: Plywood (¾-inch or thicker) or MDF are excellent choices due to their density, which helps block sound. Ensure the material is sturdy enough to support the AC unit and the additional soundproofing layers.
- Soundproofing:
- Mass Loaded Vinyl (MLV): This dense, flexible material is highly effective at blocking airborne noise. It should be applied to the interior walls of the cabinet.
- Acoustic Foam/Insulation: Open-cell foam or mineral wool can absorb sound waves, reducing echo and reverberation within the cabinet. Use it in conjunction with MLV for best results.
- Vibration Dampening: Rubber feet or isolation pads under the AC unit will absorb vibrations, preventing them from transferring to the cabinet structure.
- Ventilation Strategy: This is critical. Portable AC units typically have two main airflows:
- Cooling Air Intake: Draws ambient workshop air to be cooled and expelled into the room. This intake needs to be unimpeded.
- Exhaust Air Output: Expels hot air (generated by the cooling process) and moisture out of the unit, usually through a flexible duct to the outside. This requires dedicated ventilation.
- Design for Cross-Ventilation: Create strategically placed intake and exhaust vents. The intake vent for the AC unit’s cooling air should draw from the coolest part of the workshop, while the hot air exhaust must be directed outside.
- Ducting: Use insulated flexible ducting to connect the AC’s exhaust port to an exterior wall or window. Ensure the ducting is as short and straight as possible to minimize resistance and heat loss. Seal all connections to prevent hot air from re-entering the workshop or the cabinet.
- Fan Assistance (Optional): For larger AC units or longer exhaust runs, consider incorporating an inline duct fan to assist in expelling hot air, further improving efficiency.
- Access and Maintenance:
- Front Panel: Design a removable or hinged front panel for easy access to the AC unit’s controls and for cleaning/filter changes.
- Condensate Drain: Ensure easy access to the condensate tray or drain hose. Consider routing the drain hose to a larger reservoir or directly outside if possible.
- Portability: If you need to move the enclosure, add heavy-duty casters to the base. For example, similar principles could be applied to a DIY portable power station enclosure for mobile power needs.
Step-by-Step Construction Guide
This guide provides a general framework. Always adapt the dimensions and specifics to your unique AC unit and workshop space.
Measure and Plan:
- Measure your AC unit accurately.
- Sketch your design, noting all dimensions, vent locations, and access points.
- Determine the size and location of the intake and exhaust openings. Remember to allow ample space for air movement.
- Plan for soundproofing layers within the cabinet.
Cut Cabinet Panels:
- Cut the top, bottom, side, and back panels from ¾-inch plywood or MDF.
- Cut the front panel. This can be a single piece, or incorporate a door for easy access.
Assemble the Basic Box:
- Join the side panels to the bottom and back panels using wood glue and screws. Ensure square corners.
- Attach the top panel securely. Reinforce joints with corner braces if desired. Consider using dado or rabbet joints for stronger construction, a skill that enhances many beginners guide to hand cut joinery classic joints adapted for modern workshop workflows.
Integrate Ventilation Openings:
- AC Intake: Cut a large opening on one side or the back panel, away from the exhaust, to allow the AC to draw in ambient air. Cover this with a grille or mesh to prevent debris entry.
- Hot Air Exhaust: Cut an opening on the back or side panel to accommodate the AC’s exhaust hose. This opening should be precisely sized for the ducting.
- Cabinet Venting: Create additional vents near the bottom (intake) and top (exhaust) of the cabinet itself to ensure internal airflow around the AC unit and prevent heat buildup within the enclosure. These should be covered with grilles.
Soundproofing Installation:
- Line the interior surfaces of the cabinet (sides, top, back, and the inside of the front panel/door) with Mass Loaded Vinyl (MLV). Secure it firmly with screws and washers or heavy-duty adhesive. Overlap seams where possible and seal with acoustic sealant tape.
- Apply acoustic foam or mineral wool over the MLV. This will absorb residual sound. Ensure it doesn’t block the AC’s vents or airflow paths.
- Place rubber isolation pads or a dense rubber mat under where the AC unit will sit to absorb vibrational noise.
Install the AC Unit and Ducting:
- Carefully place the AC unit inside the cabinet on its isolation pads.
- Connect the flexible exhaust ducting from the AC unit to the external exhaust opening. Seal all connections with foil tape to prevent air leaks.
- Route the condensate drain hose to your chosen collection method.
Final Touches:
- Attach the front panel or door. Use hinges and latches if it’s a door, or strong magnets if it’s removable. Line the edges of the door/panel with weatherstripping or acoustic sealant tape to create an airtight seal when closed.
- Add casters to the base if mobility is desired.
- Apply paint or a protective finish that matches your workshop’s aesthetic.
Optimizing Performance and Longevity of Your DIY Portable AC Enclosure Cabinet
Building the enclosure is a significant step, but optimizing its performance and ensuring its longevity requires ongoing attention to detail. This includes maximizing sound reduction, ensuring efficient cooling, and regular maintenance.
Maximizing Sound Reduction
Even with soundproofing materials, residual noise can escape. Consider these additional steps:
- Seal All Gaps: Use acoustic sealant or weatherstripping around all panel joints, vent openings, and the access door. Even small gaps can compromise soundproofing.
- Insulated Ducting: If your exhaust duct runs a significant distance, using insulated ducting will help contain both noise and heat.
- Vibration Isolation: Double-check that the AC unit is not making direct contact with the cabinet walls. Any direct contact will transfer vibrations and noise. Ensure rubber pads or similar isolators are effectively in place.
- External Noise Barriers: If possible, orient the enclosure so that the loudest side of the AC unit faces away from your primary work area or towards a less sensitive part of the workshop.

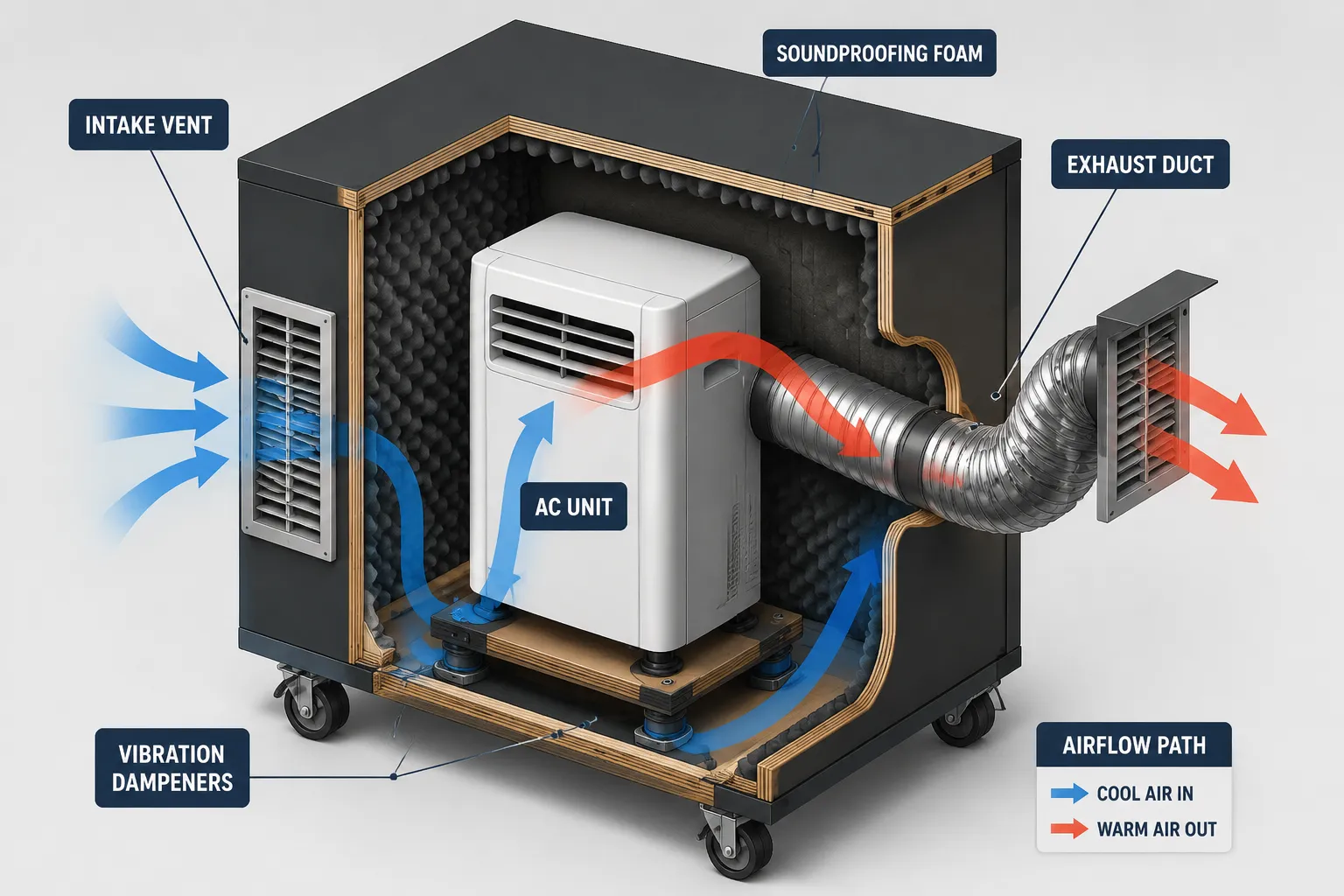

Ensuring Efficient Cooling and Airflow
An AC unit needs to breathe. Proper airflow is non-negotiable for efficiency and preventing unit damage.
- Unimpeded Intake: Regularly check that the AC’s intake vent and the cabinet’s corresponding intake vent are free from dust, debris, and obstructions. Consider adding a coarse filter to the cabinet’s intake vent to protect both the AC and your workshop’s air quality, perhaps as part of a DIY smart workshop dust collection system.
- Effective Exhaust: Ensure the hot air exhaust duct remains clear and isn’t pinched or kinked. The external exhaust point should not be obstructed. Consider a louvered vent cover for the exterior opening to prevent backdrafts and pest entry.
- Monitor Internal Temperature: If you’re concerned about heat buildup within the cabinet, a small, inexpensive thermometer placed inside can help you monitor conditions. If temperatures are consistently high, you may need to increase the size of the cabinet’s internal vents or add a small, quiet fan for internal air circulation.
- Regular Cleaning: Portable AC filters should be cleaned according to the manufacturer’s recommendations. The enclosure should be designed for easy access to these filters.
- Condensate Management: Neglecting condensate can lead to mold, water damage, and unpleasant odors. Ensure the drain pan is emptied regularly or that your continuous drain system is functioning correctly.
Integrating into Your Workshop
The enclosure shouldn’t just be functional; it should also fit well within your workshop’s overall layout.
- Placement: Position the cabinet to minimize the length of the exhaust ducting, which improves efficiency. Also, consider its proximity to your primary workspace for optimal cooling and noise reduction.
- Aesthetics: Paint or stain the enclosure to match your existing workbenches or storage units. Adding shelves above or beside the unit can turn it into a multi-functional piece of workshop furniture. This can be integrated into your overall creating ergonomic workshop layouts maximizing space and workflow in small to medium sized woodworking shops.
- Mobility vs. Stability: If casters are used, ensure they have locking mechanisms to keep the unit stable during operation. For stationary units, leveling feet can prevent wobbling.
By paying attention to these details, your DIY Portable AC Enclosure Cabinet: Soundproofing and Ventilation Solutions for Workshop Cooling Systems will not only effectively quiet your workshop but also contribute to a more efficient, organized, and pleasant working environment for years to come.
Conclusion
Creating a DIY Portable AC Enclosure Cabinet: Soundproofing and Ventilation Solutions for Workshop Cooling Systems is a practical and rewarding project that addresses common challenges associated with workshop cooling. By carefully planning for sound absorption, vibration isolation, and efficient airflow, you can transform a noisy, exposed appliance into an integrated, quiet, and effective cooling solution. The benefits extend beyond mere comfort; a quieter, cooler workspace fosters greater concentration, reduces fatigue, and can even protect your equipment from dust and accidental damage.
As you embark on this project in 2026, remember that attention to detail in material selection, precise measurements, and thorough sealing of all gaps will yield the best results. The improved air quality, reduced noise, and enhanced aesthetics will make your workshop a more productive and enjoyable space for all your creative endeavors. Take the time to design and build this enclosure right, and you’ll reap the rewards for years to come.
