Budget-Friendly Pergola and Outdoor Sofa Set: A Complete Woodworking Plan for Patio Living

The average cost of professional patio installations, including a pergola and seating, can exceed $10,000, placing such transformations out of reach for many homeowners. However, creating a functional and aesthetically pleasing outdoor living space doesn’t require a substantial budget or advanced carpentry skills. This guide offers a comprehensive woodworking plan for a Budget-Friendly Pergola and Outdoor Sofa Set: A Complete Woodworking Plan for Patio Living, specifically designed for DIY enthusiasts using affordable materials and beginner-friendly joinery. By following these plans, you can construct a durable and stylish outdoor retreat, significantly enhancing your patio without breaking the bank in 2026.

Key Takeaways

• Building your own pergola and outdoor sofa set can save thousands compared to professional installations.
• The plan utilizes readily available, affordable lumber and basic woodworking tools.
• Beginner-friendly joinery techniques make this project accessible for those new to woodworking.
• Customization options allow you to tailor the design to your specific patio dimensions and aesthetic preferences.
• Investing time in a DIY project yields a rewarding, personalized outdoor living space.

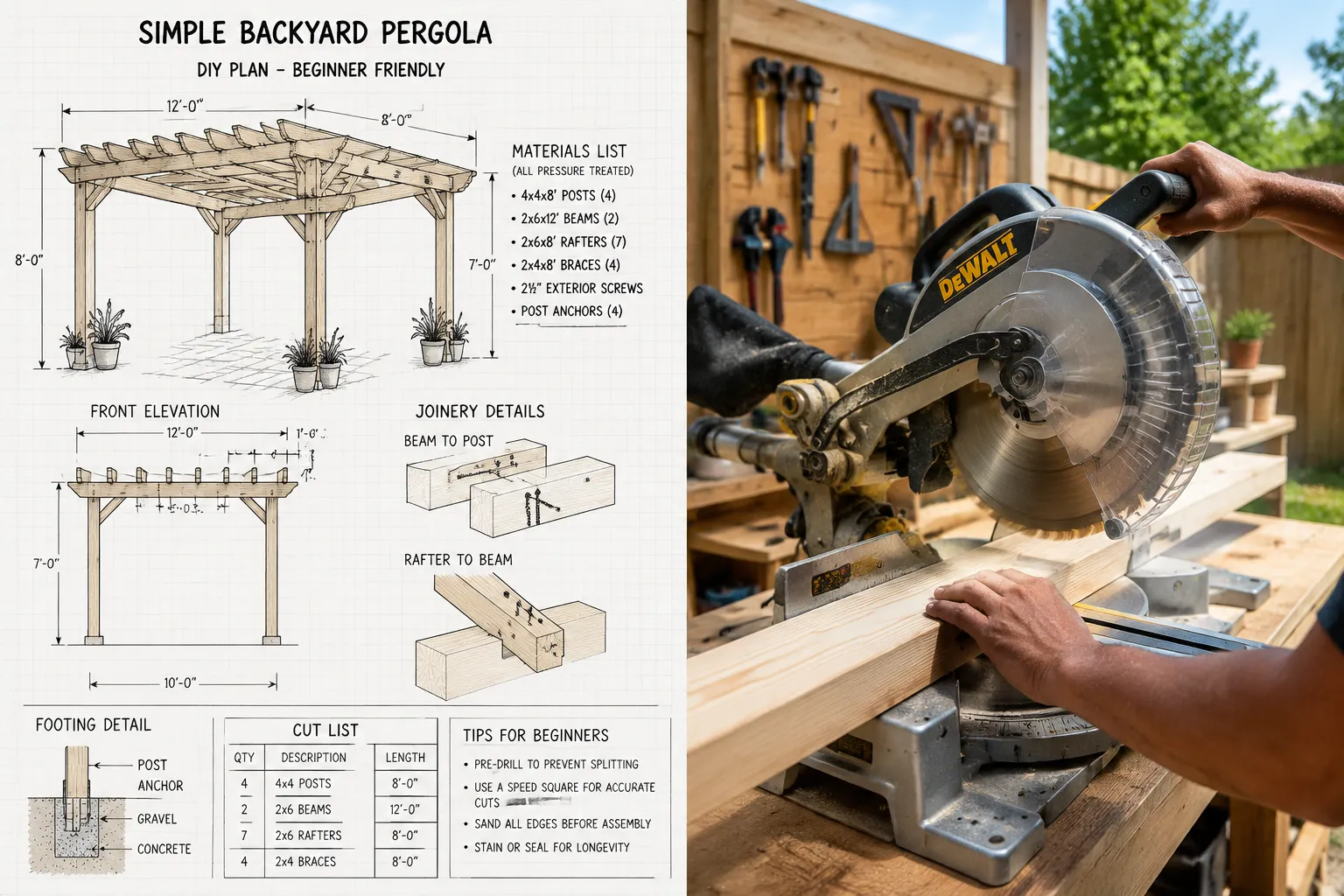

Planning Your Budget-Friendly Pergola and Outdoor Sofa Set

Successful woodworking begins with meticulous planning. For a Budget-Friendly Pergola and Outdoor Sofa Set: A Complete Woodworking Plan for Patio Living, careful consideration of design, materials, and tools is paramount to staying within budget and achieving a professional finish. This section details the initial steps, ensuring you have a solid foundation before making your first cut.

Design Considerations and Site Selection

Before purchasing any materials, visualize your outdoor space and decide where the pergola and sofa set will best fit. Consider the sun’s path throughout the day to optimize shade. Measure your patio area accurately, noting any existing structures or obstacles.

• Pergola Placement: Determine if the pergola will be freestanding or attached to your house. A freestanding design offers more flexibility in placement but may require more robust anchoring.
• Sofa Layout: Plan the dimensions of your outdoor sofa to comfortably fit the designated area, allowing for adequate walkway space around it.
• Aesthetics: Think about the overall style you want to achieve. This plan emphasizes a clean, modern-rustic aesthetic that can be easily adapted with different finishes and cushions.

Material Selection: Affordable and Durable Options

The key to a budget-friendly project lies in smart material choices. Pressure-treated lumber is an excellent option for outdoor structures due to its resistance to rot, decay, and insect infestation, offering longevity without a high cost.

• Pergola Lumber:
  • Posts: 4×4 or 6×6 pressure-treated posts for structural integrity. The choice depends on desired scale and visual weight.
  • Beams and Rafters: 2×6 or 2×8 pressure-treated lumber for the main support beams and cross rafters.
  • Purlins (optional): 2×2 or 1×2 pressure-treated lumber for additional shade elements.
• Outdoor Sofa Lumber:
  • Frame: 2×4 or 2×6 pressure-treated lumber.
  • Slats (seat and back): 1×3 or 1×4 pressure-treated lumber.
• Fasteners: Use exterior-grade screws (galvanized or stainless steel) and bolts to prevent rust and ensure structural integrity.
• Finishing: Outdoor-grade stain or paint for protection and aesthetic appeal.
• Cushions: Investing in good quality outdoor cushions is crucial for comfort and longevity. Look for sales or consider making your own with outdoor fabric.

For those interested in exploring sustainable options, consider sourcing reclaimed and salvaged wood for parts of your project, which can add unique character and further reduce costs, provided you properly assess its quality and handle it safely.

Essential Tools for the Project

This plan is designed to be achievable with a basic set of woodworking tools, making it accessible for beginners.

If you’re looking to expand your toolkit, our guide on essential hand tools for every woodworker can provide further insights.

Step-by-Step Construction: Pergola and Outdoor Sofa

With your plan in place and materials gathered, it’s time to move on to the construction phase of your Budget-Friendly Pergola and Outdoor Sofa Set: A Complete Woodworking Plan for Patio Living. This section provides clear, sequential steps for building both the pergola and the accompanying outdoor sofa, focusing on straightforward techniques suitable for beginners.

Building the Pergola

The pergola provides shade and defines your outdoor living area. Its construction involves setting posts, attaching beams, and adding rafters.

1. Layout and Post Holes:
   • Mark the exact locations for your four pergola posts. Use string lines and a carpenter’s square to ensure the layout is perfectly square.
   • Dig post holes, typically 24-30 inches deep and 10-12 inches in diameter, depending on your local frost line and soil conditions.
   • Add 6 inches of gravel to the bottom of each hole for drainage.
2. Setting the Posts:
   • Place a 4×4 or 6×6 pressure-treated post into each hole.
   • Use a level to ensure each post is plumb (perfectly vertical).
   • Temporarily brace the posts with scrap lumber.
   • Fill the holes with concrete, sloping the top away from the post to shed water. Allow the concrete to cure for at least 48-72 hours before proceeding.
3. Attaching the Beams:
   • Determine the desired height of your pergola. Mark this height on all four posts.
   • Cut two long 2×8 beams to span the length of your pergola.
   • Attach one beam to the outside face of the two front posts, aligning its top edge with your height mark. Use exterior-grade carriage bolts (2 per post) to secure it.
   • Repeat for the back posts.
   • Cut two shorter 2×8 header beams to span the width, fitting between the long beams. These will sit on top of the posts and the long beams. Secure with screws or structural connectors.
4. Installing the Rafters:
   • Cut your 2×6 rafters to the desired length, typically extending beyond the beams by 12-18 inches for an overhang. You can notch the ends for a decorative touch if desired.
   • Space the rafters evenly across the header beams, typically 16-24 inches apart.
   • Attach the rafters to the header beams using structural screws or metal hurricane ties.
   • For added shade, you can install smaller purlins (1×2 or 2×2 lumber) perpendicular to the rafters, spaced every 6-12 inches.

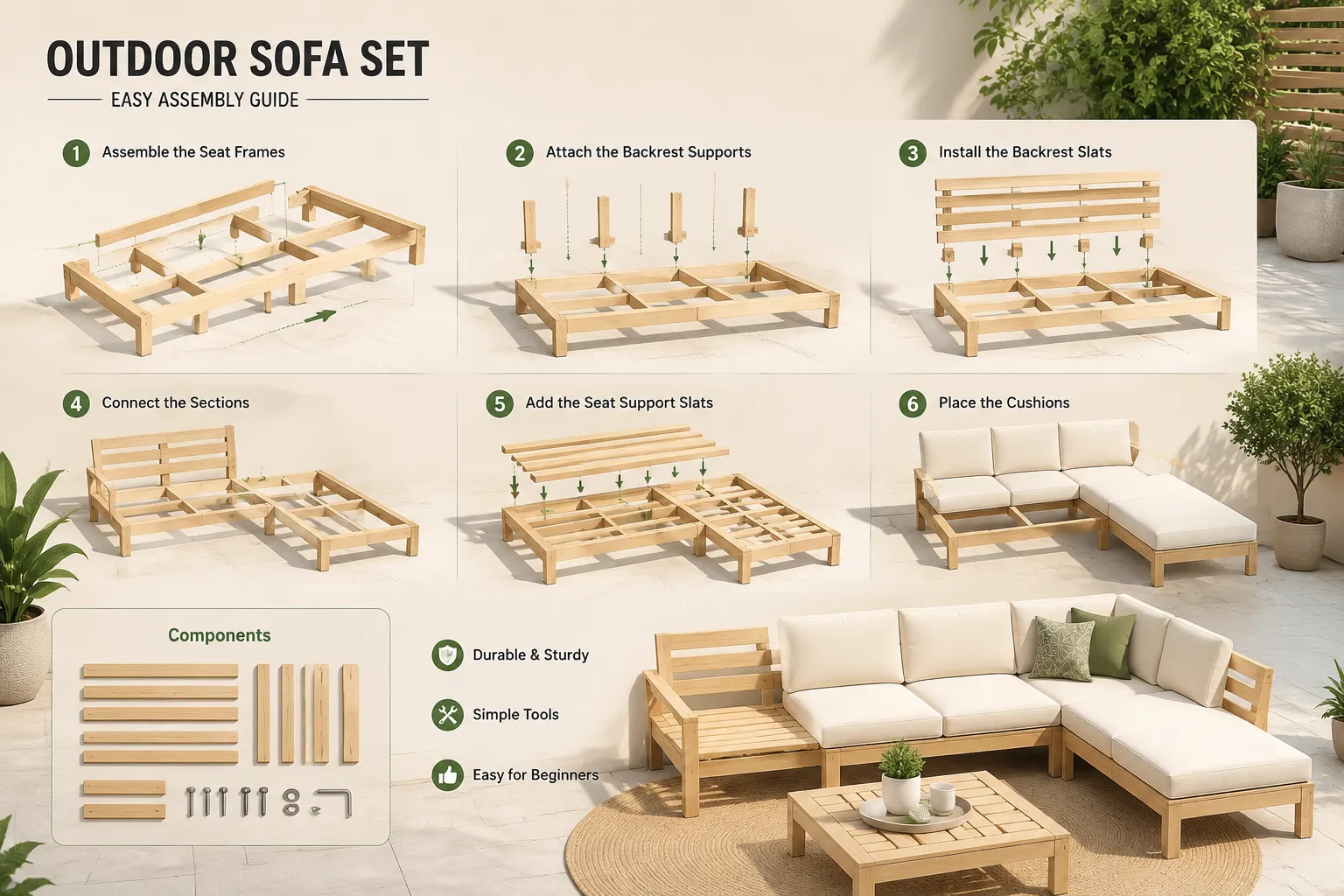

Constructing the Outdoor Sofa Set

This plan focuses on a modular design, allowing you to create a single sofa or multiple seating units.

1. Cutting the Frame Components:
   • Using 2×4 or 2×6 pressure-treated lumber, cut pieces for the seat frames (front, back, sides), and backrest supports.
   • Ensure all cuts are square for a stable frame.
2. Assembling the Seat Frames:
   • Create rectangular seat frames by screwing the front and back pieces to the side pieces. Use two exterior-grade screws at each joint.
   • Add a central support cross-piece for larger sofas to prevent sagging.
3. Attaching Legs and Armrests:
   • Cut four short sections of 2×4 lumber for legs. Attach them to the inside corners of each seat frame.
   • Cut additional 2x4s for armrests. These can be simple extensions of the frame or added on top.
4. Building the Backrest:
   • Cut vertical support pieces for the backrest. These can be screwed directly to the back of the seat frame or extended upwards from the back legs.
   • Cut horizontal slats (1×3 or 1×4 lumber) to form the backrest. Space them evenly and attach them with screws.
5. Sanding and Finishing:
   • Thoroughly sand all surfaces of both the pergola and sofa components to remove splinters and prepare for finishing.
   • Apply at least two coats of exterior-grade stain or paint. This protects the wood from UV damage and moisture, significantly extending its lifespan. For guidance on appropriate finishes, consider exploring sustainable finishes for reclaimed wood, which can also apply to new treated lumber for outdoor use.

Beginner-Friendly Joinery Tips

For this project, simplicity and strength are prioritized.

• Butt Joints with Screws: The most common and easiest joint. Ensure pilot holes are drilled to prevent splitting.
• Lap Joints: For stronger connections, especially where beams cross, you can cut shallow dados (grooves) to allow pieces to overlap and sit flush.
• Pocket Hole Joinery: If you have a pocket hole jig, it can create strong, hidden joints, giving a cleaner look. While not strictly necessary for this budget-friendly plan, it’s a useful technique to learn.

Customization, Maintenance, and Enjoying Your Patio Oasis

Completing the construction of your Budget-Friendly Pergola and Outdoor Sofa Set: A Complete Woodworking Plan for Patio Living is a significant accomplishment. The final steps involve personalizing your new outdoor space, understanding its maintenance needs, and, most importantly, enjoying the fruits of your labor.

Personalizing Your Outdoor Space

While the core plan provides a solid foundation, customization is where your personality truly shines. Small additions and decorative touches can transform your pergola and sofa set into a unique patio oasis.

• Shade Solutions:
  • Fabric Canopy: Drape weather-resistant fabric over the rafters for additional shade and a softer aesthetic. Retractable options offer flexibility.
  • Climbing Plants: Plant fast-growing vines like wisteria, trumpet vine, or grapes at the base of your pergola posts. Over time, they will climb and provide natural shade and beauty.
  • Lattice Panels: Attach lattice panels to one or more sides of the pergola for extra privacy and shade.
• Lighting:
  • String Lights: Wrap outdoor string lights around the pergola beams for a magical ambiance in the evenings.
  • Solar Lights: Install solar-powered path lights or lanterns around the perimeter.
  • LED Strips: Concealed LED strips can provide a modern, subtle glow.
• Comfort and Decor:
  • Outdoor Cushions: Choose weather-resistant cushions and throw pillows in colors and patterns that complement your home’s exterior.
  • Area Rug: An outdoor rug can define the seating area and add warmth underfoot.
  • Planters and Greenery: Incorporate potted plants and herbs to bring life and freshness to the space. Hanging baskets from the pergola rafters add vertical interest.
  • Side Tables: Add small DIY side tables or repurpose existing ones for drinks and snacks. You might find inspiration in our guide to mastering shelf woodworking for crafting complementary pieces.

Maintenance for Longevity

To ensure your budget-friendly pergola and outdoor sofa set remains beautiful and structurally sound for years, regular maintenance is essential.

• Cleaning: Annually, or as needed, clean the wood surfaces with a mild soap and water solution, followed by a thorough rinse. A soft brush can help remove dirt and mildew.
• Re-sealing/Re-staining: Depending on your climate and the type of finish used, reapply a protective stain or sealant every 2-3 years. This protects the wood from UV damage, moisture, and wear. Look for signs of fading or peeling.
• Fastener Check: Periodically inspect all screws and bolts. Tighten any that have come loose and replace any that show signs of corrosion or damage.
• Wood Inspection: Check for any signs of rot, insect damage, or cracks. Address minor issues promptly to prevent them from becoming major problems. If you notice any significant wood damage, a guide like reclaimed wood restoration can offer techniques for repair and rejuvenation, even for non-reclaimed wood.

By adhering to a simple maintenance schedule, your DIY outdoor living space will continue to provide enjoyment and enhance your home’s value without constant costly repairs.

Enjoying Your New Outdoor Living Space

The ultimate reward for your hard work is the opportunity to relax and entertain in your newly created patio oasis. Whether it’s morning coffee under the dappled shade of the pergola, an afternoon reading session on the comfortable sofa, or an evening gathering with friends, this space is now yours to enjoy. The satisfaction of having built it yourself, knowing you’ve created a beautiful and functional addition to your home on a budget, is truly unparalleled.

Conclusion

Transforming your outdoor space with a custom-built pergola and sofa set is a highly rewarding endeavor that combines cost savings with the immense satisfaction of DIY craftsmanship. This guide has provided a complete woodworking plan for a Budget-Friendly Pergola and Outdoor Sofa Set: A Complete Woodworking Plan for Patio Living, detailing everything from initial design considerations and material selection to step-by-step construction and ongoing maintenance. By utilizing affordable pressure-treated lumber and employing beginner-friendly joinery techniques, you can create a durable, attractive, and comfortable outdoor living area tailored to your specific needs and aesthetic preferences in 2026. The financial savings are substantial, and the ability to customize every aspect ensures a truly unique addition to your home.

The journey from raw lumber to a finished patio oasis fosters a deeper connection to your living environment and provides invaluable woodworking experience. With proper planning, careful execution, and regular maintenance, your budget-friendly pergola and outdoor sofa set will provide years of enjoyment, making your patio the ideal setting for relaxation, entertainment, and cherished memories.

Actionable Next Steps:

1. Review the Plans: Re-read the material list and dimensions, adjusting for your specific patio size.
2. Gather Materials: Purchase all necessary lumber, fasteners, and finishing products.
3. Prepare Your Workspace: Set up a safe and organized area for cutting and assembly.
4. Start Building: Take each step methodically, focusing on accuracy and safety.
5. Personalize and Enjoy: Add your chosen cushions, lighting, and decor, then relax in your new outdoor retreat!
